EinScan HX

EinScan HX gives user the ability to scan a wider range of applications and opens up more types of objects that can be scanned.
Request a quote

The EinScan HX provides a better performance on dark or reflective surfaces, as well as being less sensitive to ambient light.

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Reliable Results

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.Minimum point distance 0.05 mmAccuracy up to 0.04 mm under Laser Scan

High Efficiency

Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.

With built-in color camera, it supports full color texture capturing and tracking by texture.

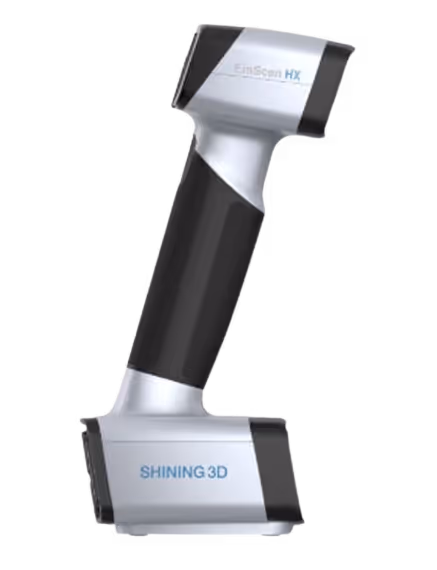

Product Image
Physical Dimensions

Width         108 mm
Depth         110 mm
Height        237 mm
Weight       710g


Scan Accuracy
Up to 0.05mm
Scan Speed
1,200,000 points/s - 20FPS
Align Mode
Feature Alignment Markers Alignment Texture Alignment Hybrid Alignment
Depth of Field
200mm-700mm
Point Distance
0.25mm-3mm
