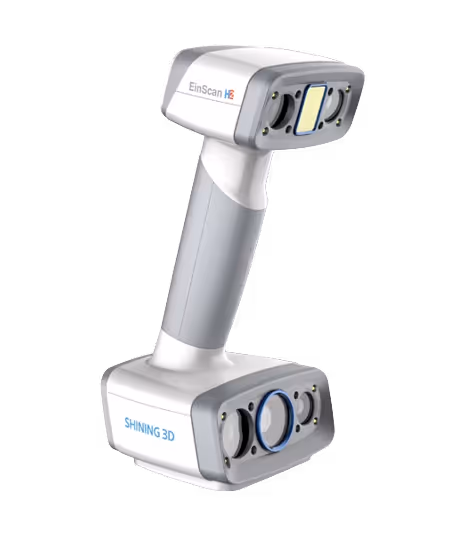

EinScan H2

The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data. Its wide scanning area and adjustable working distance make it suitable for various scenes and objects, both small and large, in narrow or wide spaces. The EinScan H2 is an efficient 3D scanning tool that can revolutionize your workflow.
Request a quote

Provide superior material and lighting adaptability, effortlessly handling various surface types and scanning environments.

High Texture Resolution Handheld 3D Scanner

The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data. Its wide scanning area and adjustable working distance make it suitable for various scenes and objects, both small and large, in narrow or wide spaces. The EinScan H2 is an efficient 3D scanning tool that can revolutionize your workflow.

Photorealistic Texture

Captures rich, bright colors and clean textures for photorealistic 3D models.

Hybrid Light Source

Dual Light source improves scanning efficiency.
LED light offers fast 3D scanning with accurate, high-quality data.·Infrared VCSEL is ideal for capturing dark surfaces, for human body scanning, and for bright-lit environments.

Ultra-wide FOV and
Adjustable Working Distance

Physical Dimensions

Width         108 mm
Depth         110 mm
Height        237 mm
Weight       731.1 g


Scan Accuracy
Up to 0.05mm; Up to 0.1mm
Scan Speed
1,200,000points/s; 1,060,000points/s
Align Mode
Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
Depth of Field
200mm-700mm; 200mm-1500mm
Maximum FOV
420mm x 440mm; 780mm x 900mm
